Bibliography

Zazueta S. et.al.
``La Cámara OAN-K400'',
Reporte Técnico RT-2001-02 Instituto de Astronomía.
2001.

Zazueta S.
``PROGRAMAS DEL GUIADOR 2m DEL GUIADOR 84cm OPCIONES DE EJECUCIÓN Y COMO COMPILARLOS''
Reporte Técnico en preparación.
2004.

APENDICE
DIAGRAMAS ELECTRONICOS

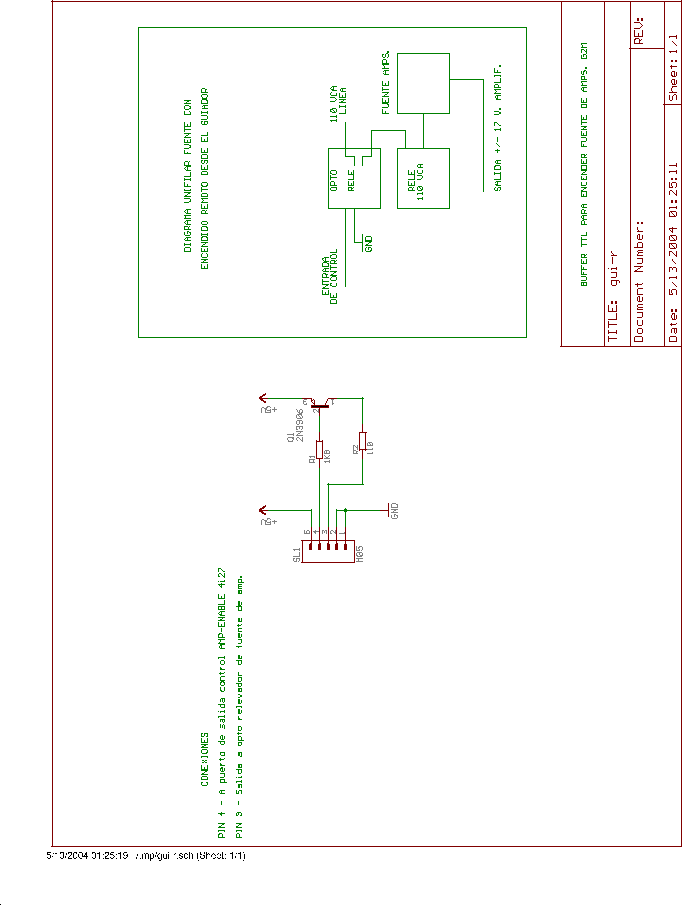

Figura 4.2: ESQUEMATICO REFORZADOR INTERRUPTOR DE FUENTE GUIADOR G2M

\scalebox{.75}{
\includegraphics{buffer-ttl-fte.eps}
}

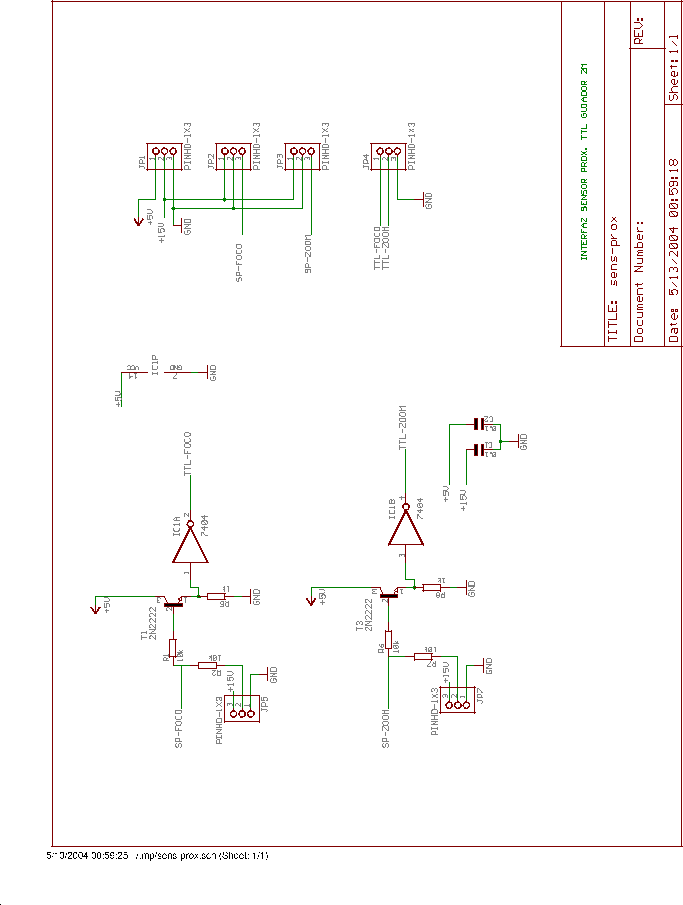

Figura 4.3: ESQUEMATICO INTERFAZ SENSORES DE PROXIMIDAD FOCO Y ZOOM
\scalebox{.75}{
\includegraphics{sens-prox-sch.eps}
}

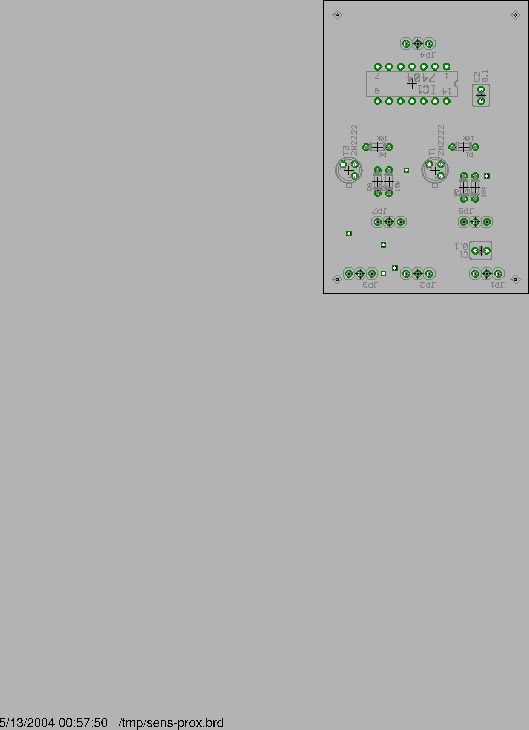

Figura 4.4: COMPONENTES INTERFAZ SENSORES DE PROXIMIDAD FOCO Y ZOOM
\scalebox{1}{
\includegraphics{sens-prox-brd.eps}
}

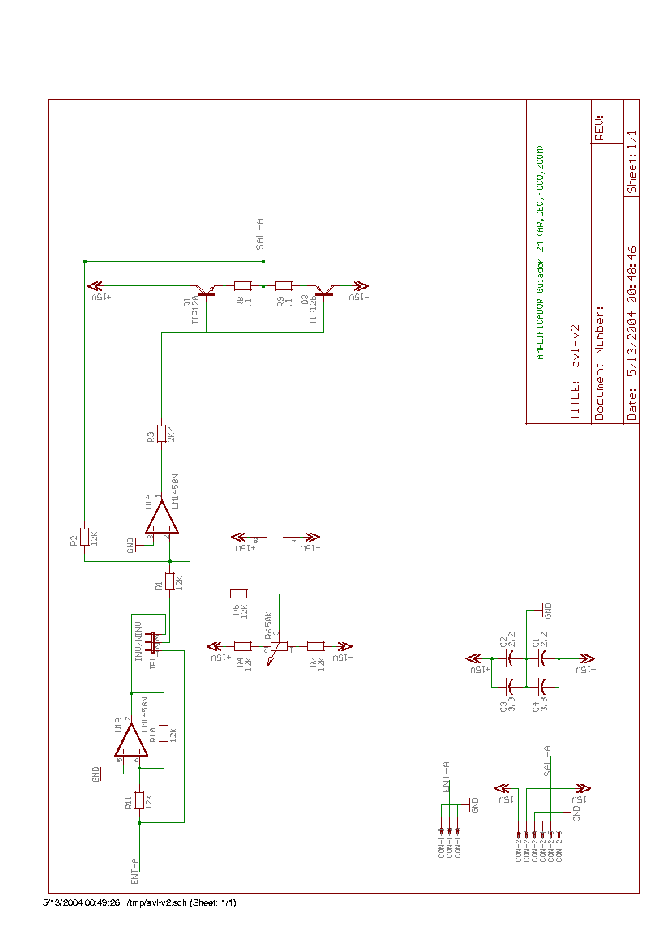

Figura 4.5: ESQUEMATICO AMPLIFICADORES GUIADOR G2M
\scalebox{.75}{
\includegraphics{ampli-sch.eps}
}

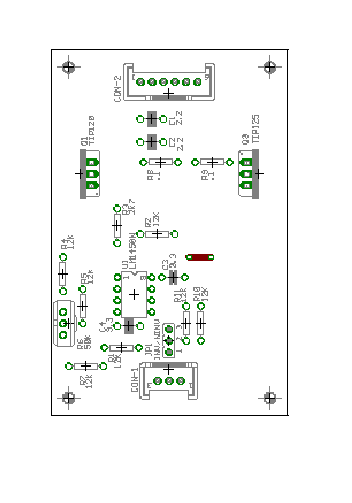

Figura 4.6: COMPONENTES AMPLIFICADORES GUIADOR G2M
\scalebox{1}{
\includegraphics{ampli-brd.eps}
}

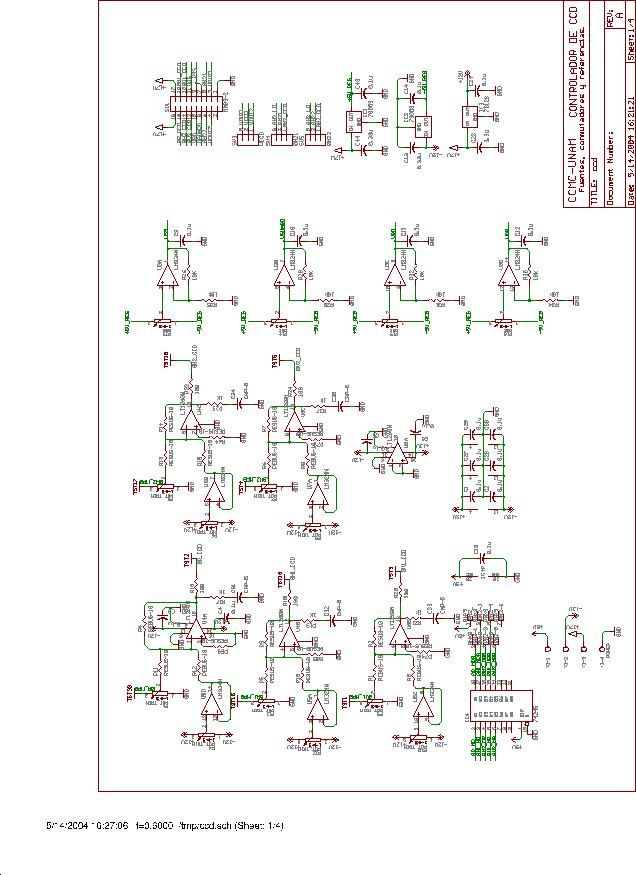

Figura 4.7: Página 1, esquemático CCD KODAK GUIADOR G2M
\scalebox{.75}{
\includegraphics{ccd-g2m-p1-sch.eps}
}

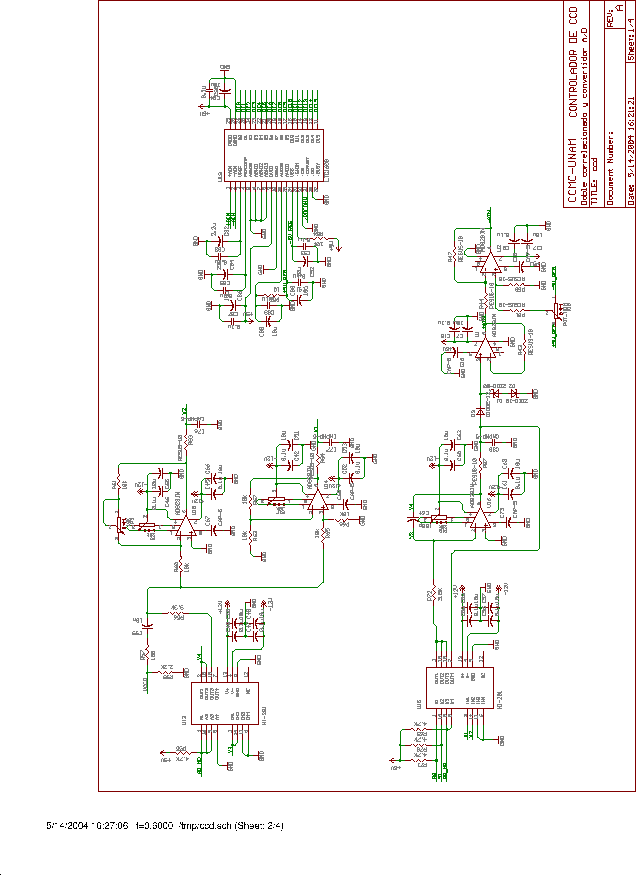

Figura 4.8: Página 2, esquemático CCD KODAK GUIADOR G2M
\scalebox{.75}{
\includegraphics{ccd-g2m-p2-sch.eps}
}

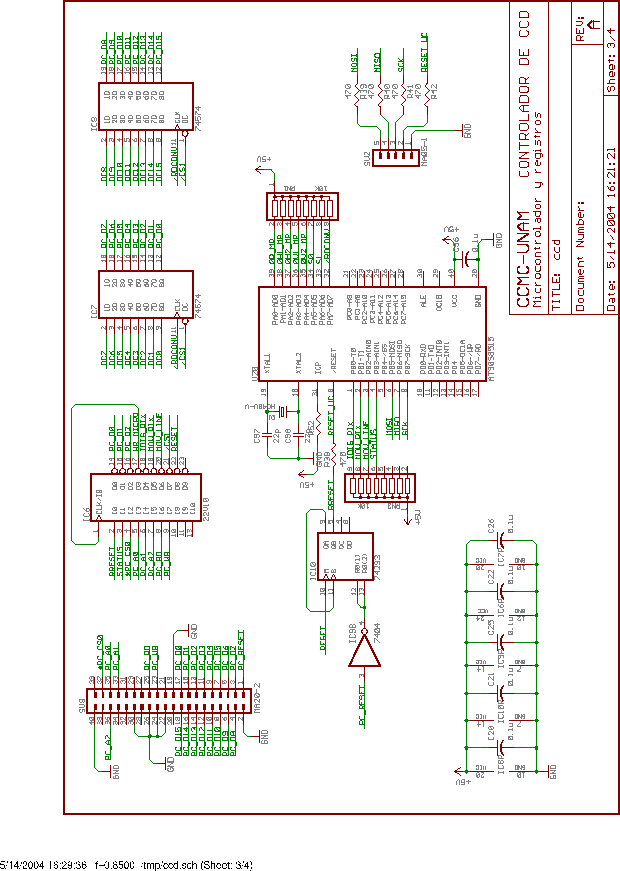

Figura 4.9: Página 3, esquemático CCD KODAK GUIADOR G2M
\scalebox{.8}{
\includegraphics{ccd-g2m-p3-sch.eps}
}

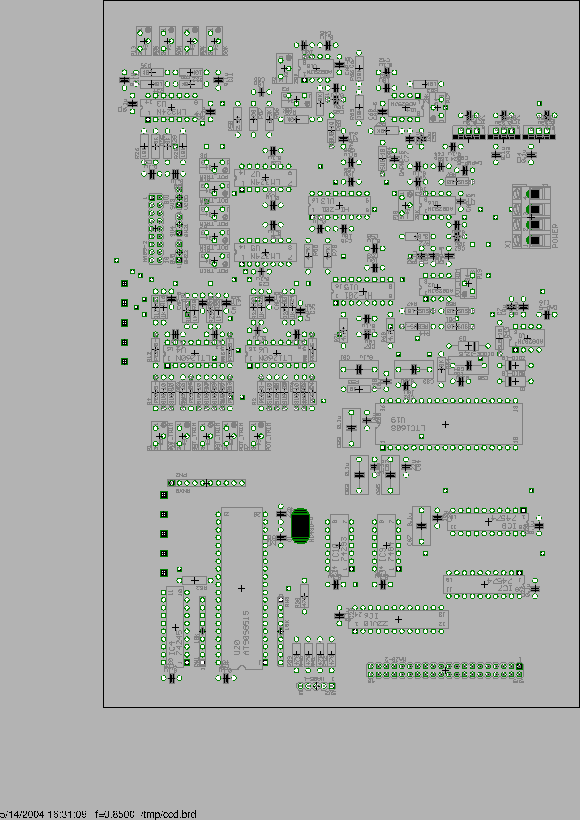

Figura 4.10: COMPONENTES CCD KODAK GUIADOR G2M
\scalebox{.8}{
\includegraphics{ccd-g2m-brd.eps}
}
